WHFF-12DKG
Lvjie
Product Description
Work Condition:
1)Refrigerant side: R22,R134a,R407c,R410a etc.
2)Water side: fresh water, nature water, drink water, seawater, saltwater, ground water etc .
Material:
1)Heat transfer Tube: 316L / SUS304 / Copper / Titanium/Aluminum Brass/Copper Nickel B10 B30
2)Shell: 316L / SUS304 / Carbon steel / PP / PVC
Cooling Capicity: From 5HP-500HP, Complete specifications and support customization.

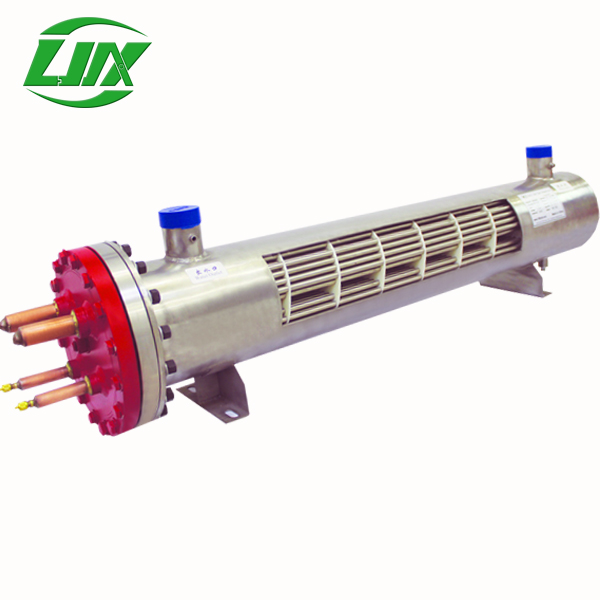

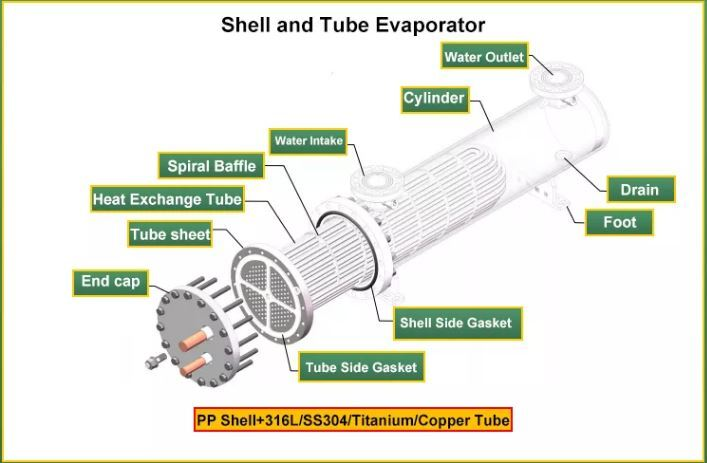

In a dry evaporator, the liquid secondary refrigerant flows from outside the tube. In order to increase the flow rate of the secondary refrigerant, multiple baffle rods are installed on the tube bundles in the cylinder block.
Removable Easy To Clean

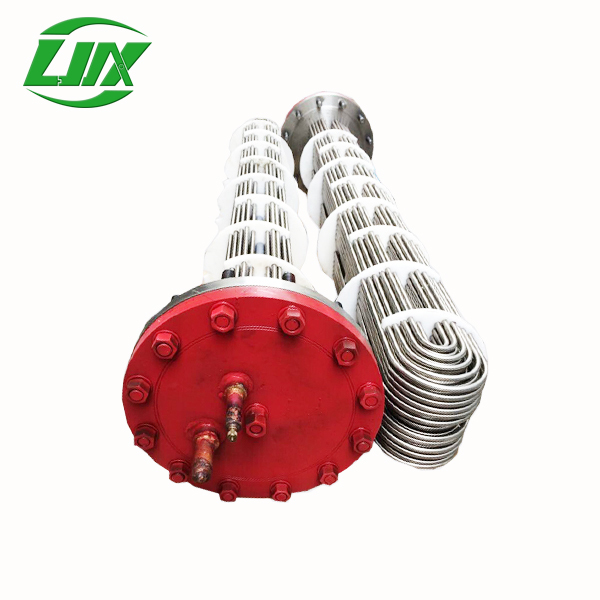

You can take tube bundle out of shell, it can be easily cleaned.
The spiral baffle makes the shell side fluid flow in a continuous spiral shape.
The advantages of a dry shell and tube evaporator include:
① less liquid filling, approximately 40% of the tube volume.
② Less affected by the static pressure of the refrigerant liquid.
③ Convenient oil drainage.
④ The refrigerant will not expand and crack the pipe when it freezes.
⑤ The refrigerant level is easy to control.
⑥ Compact structure.
Wuxi Lvjie Machinery Co.,Ltd.designs and manufactures a wide range of heat exchangers for refrigeration, industrial and special applications .Our evaporators and condensers can be manufactured with different materials and can work with all types of fluids and with duty up to 6000 kW. We are prepared for the solution of different heat exchange problems, thanks to the widest experience of technical departments able to suggest technical solutions best suited to each customer's need.
FAQ:
1.Are you factory?
Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.
2.Are there any discount for the heat exchangers?
Yes. Bigger quantity will enjoy lower discount!
3.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size.
4.What is the MOQ?
We accept loose quantity order,mixed order,any trial orders.
5.When can I get the price?
We usually quote within 8 hours after we get your inquiry.
